If you’re upgrading your workshop or setting up a new production line, a 10 ton overhead crane is a serious investment. And the first question everyone asks is — what’s the price?

Here’s the short answer: a 10 ton overhead crane typically costs between $5,000 and $25,000, depending heavily on whether you choose single girder or double girder.

But that’s just the crane itself. In this article, we’ll break down real pricing, the single vs. double girder difference, and what you’ll actually pay after installation.

Quick Price Overview

These prices include the crane bridge, hoist, and trolley. Rail, shipping, and installation are extra.

The #1 Price Factor: Single vs. Double Girder

This decision alone can double your cost. So let’s get clear on the difference.

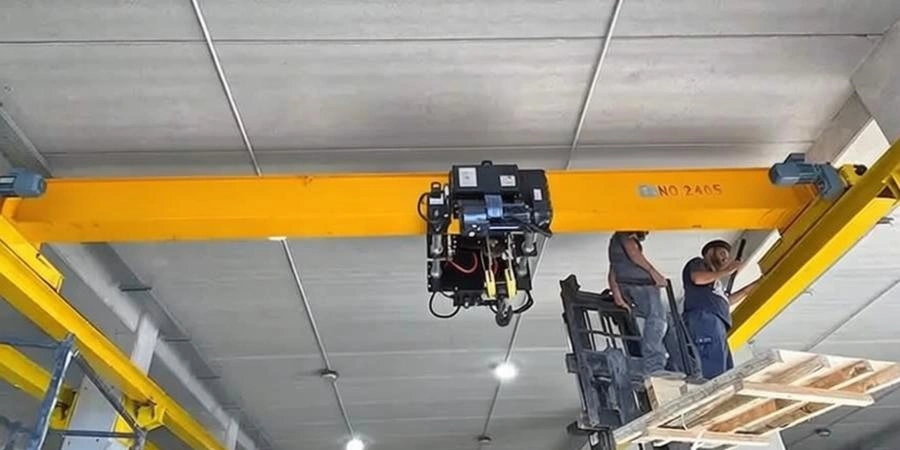

Single Girder 10 Ton Overhead Crane

• One bridge beam – simpler, lighter, cheaper

• Hoist runs under the beam – slightly lower lifting height

• Best for: General manufacturing, warehouses, machine shops

• Price range: $5,000 – $12,000

Double Girder 10 Ton Overhead Crane

• Two bridge beams – stronger, more stable

• Hoist runs between beams – higher lifting height

• Best for: Heavy-duty cycles, high headroom needs, steel service centers

• Price range: $12,000 – $25,000

Which should you pick?
If your 10 ton crane runs a few hours daily for general lifting — single girder is plenty. If it runs non-stop or needs maximum hook height — go double girder.

5 Other Factors That Affect 10 Ton Crane Price

1. Span Length

The distance between your runway rails drives steel and manufacturing costs. A 12m span costs much less than a 25m span. Know your workshop width before asking for quotes.

2. Lifting Height

Standard lifting heights are 6m, 9m, or 12m. Higher height means longer wire rope and bigger hoist drum — add $500–$2,000.

3. Duty Class (Work Grade)

For most 10 ton applications, A5 is the sweet spot — handles daily work without overpaying.

4. Control Type

• Pendant (wired) – lowest cost, reliable

• Radio remote – adds $600–$1,800, great for operator mobility

• Cabin – most expensive, typically for double girder

5. Brand & Origin

For most buyers: A quality Chinese 10 ton single girder crane offers the best value. Just verify CE/ISO certification and warranty.

Total Cost: Crane + Extras

The crane price is only 50–70% of your total project budget. Add these:

Real example: A $9,000 10 ton crane often becomes $14,000–$17,000 fully installed and running.

Price by Use Case

How to Get an Accurate Quote (No Wasted Time)

When emailing suppliers, include this info:

1. Capacity – 10 tons

2. Span – distance between rails (meters)

3. Lifting height – hook to floor (meters)

4. Single or double girder?

5. Duty class – A3, A5, or A7

6. Control type – pendant, remote, or cabin

7. Power supply – voltage / phase / Hz

8. Workshop constraints – low headroom? high dust?

💡 Pro tip: Send the same spec sheet to 3–5 manufacturers. Compare price, delivery, warranty (12–24 months), and spare parts availability. Price gaps of 30% are common.

Final Take: What You’ll Really Pay

So, what’s the real 10 ton overhead crane price?

• Budget option: $6,000 – $8,000 for a basic single girder crane

• Most common: $8,000 – $12,000 for a solid single girder A5 crane

• Double girder: $13,000 – $18,000 for better height and stability

• Premium / heavy duty: $20,000+

And don’t forget — add 40–60% for rail, shipping, installation, and taxes.

The smart strategy:
Define your real daily use first. Most buyers don’t need double girder. A well-specced single girder 10 ton crane saves you thousands and works perfectly for years.

*Need a quote for your workshop? Send us your span, lifting height, and duty class — we’ll reply with a factory-direct 10 ton crane price within 24 hours.*
